1000 mm outdoor fixed platform
Titan 1000 Pro
A large-format outdoor platform available in 1000 × 1000 mm and 500 × 1000 mm cabinet formats. It supports 500 × 250 mm and 250 × 250 mm modules, plus a dedicated 62.5 × 250 mm module for curved-corner configurations. Front and rear service access gives installers more freedom when planning wall structures and maintenance space.
Module sizes500 × 250 / 250 × 250 / 62.5 × 250 mm
Cabinet sizes1000 × 1000 / 500 × 1000 mm
Front & rear maintenance62.5 × 250 mm curved-corner moduleAluminum module rear shellIP65 front/rearP2.97–P10.42
Get project pricingChoose Titan 1000 Pro when the project is designed around 1000 × 1000 mm or 500 × 1000 mm cabinet formats with 500 × 250 mm or 250 × 250 mm modules, or requires the dedicated 62.5 × 250 mm format for curved-corner layouts. The aluminum module rear shell reduces weight and supports efficient heat dissipation.
Service from either side

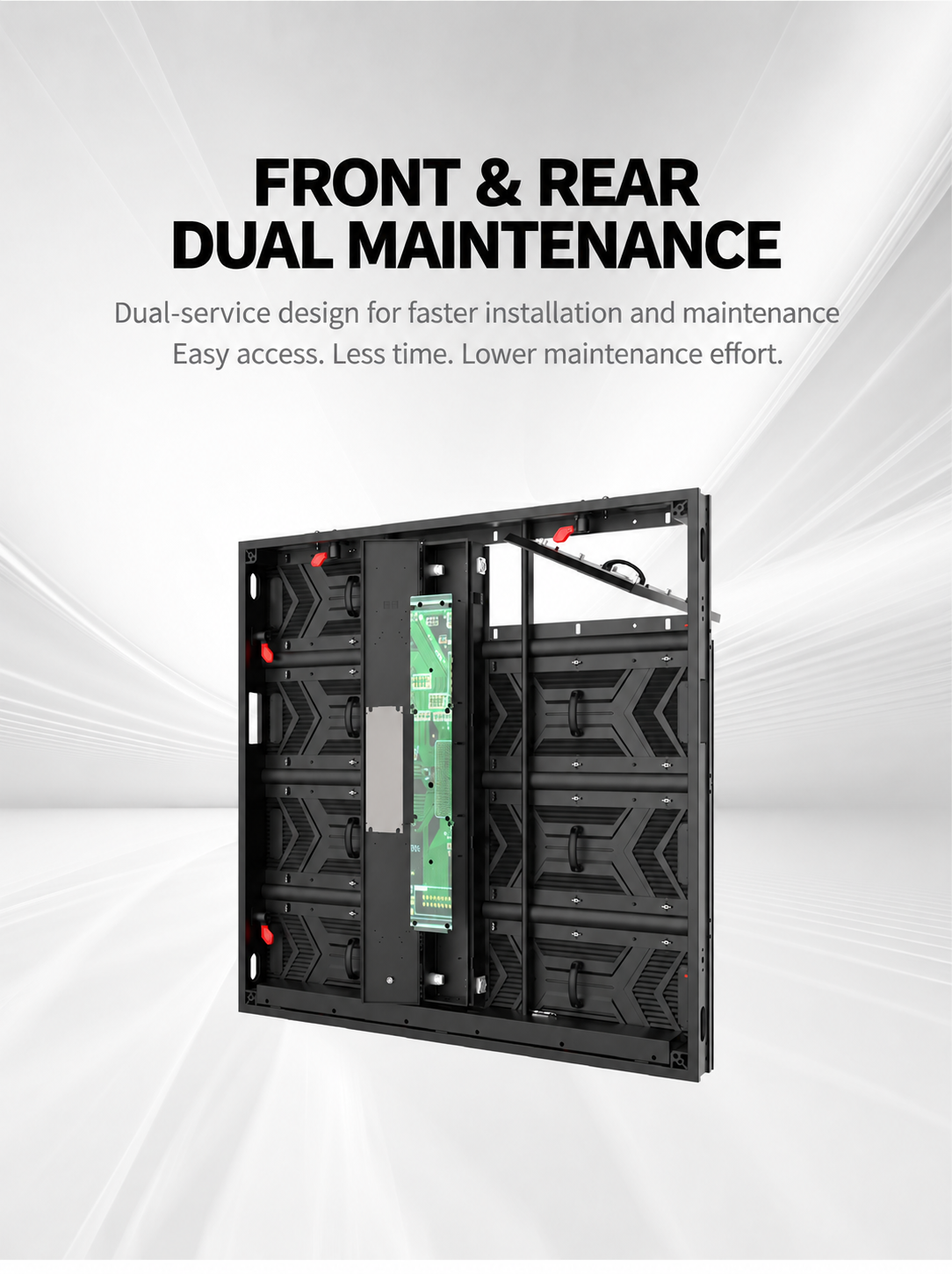

Front & Rear Dual Maintenance
Open the cabinet from the side that suits the installation. Dual-side access makes component replacement faster and reduces the need for a dedicated rear service corridor.
Front accessFor wall-mounted and space-limited projects
Rear accessFor conventional structures and service corridors
Faster serviceShorter access time for routine maintenance
Technical configuration
Titan 1000 Pro specifications
Six pitch options use the 1000 mm cabinet platform with 500 × 250 mm, 250 × 250 mm or dedicated 62.5 × 250 mm curved-corner module formats.
| Pixel pitch | P2.97 | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
|---|---|---|---|---|---|---|
| Module resolution | 168×84 | 128×64 | 104×52 | 80×40 | 64×32 | 48×24 |
| LED package | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Scan mode | 1/21 | 1/16 | 1/13 | 1/5 | 1/4 | 1/2 |
| Brightness (cd/m²) | ≥4500 | ≥4500 | ≥4500 | ≥6000 | ≥6000 | ≥6000 |
| Cabinet resolution | 336×336 | 256×256 | 208×208 | 160×160 | 128×128 | 96×96 |
| Module sizes | 500 × 250 mm / 250 × 250 mm / 62.5 × 250 mm |
| Curved-corner module | 62.5 × 250 mm; dedicated to curved-corner configurations |

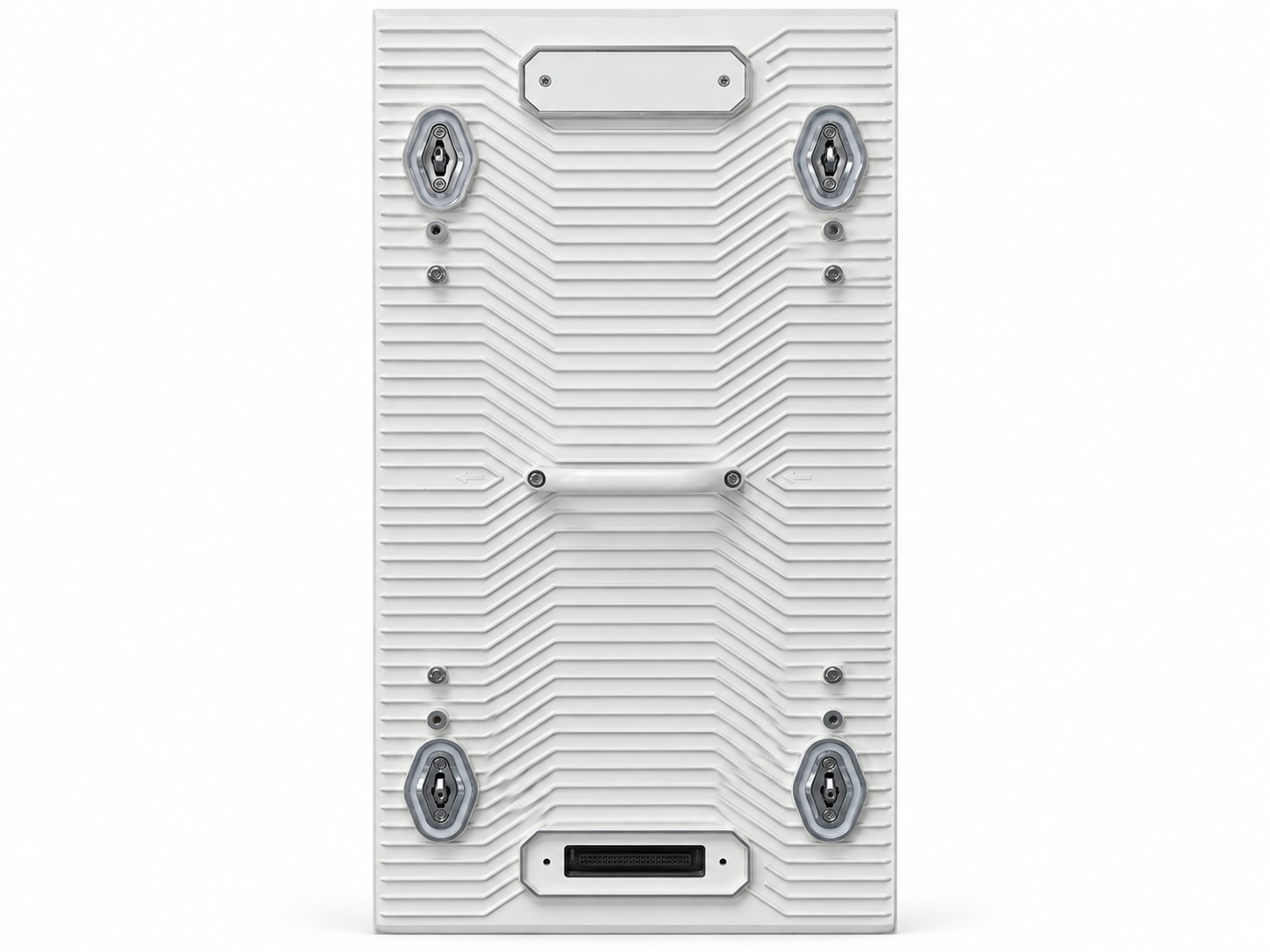

| Module rear shell | Aluminum; lightweight construction with efficient heat dissipation |
| Cabinet sizes | 1000 × 1000 mm / 500 × 1000 mm |
| Refresh rate / grayscale | ≥3840 Hz / 14 bit |
| Cabinet weight | 25 kg |
| Protection rating | IP65 front and rear |
| Maintenance | Front and rear dual maintenance; hub-board connection |
| Power consumption | Common cathode: 180 W/m² average, 550 W/m² maximum; regular configuration: 280/750 W/m² |
| Input / operating temperature | 110–220 V AC ±10% / -20°C to +65°C |
Product design
Engineered for installation and service
Product gallery
Titan 1000 Pro views

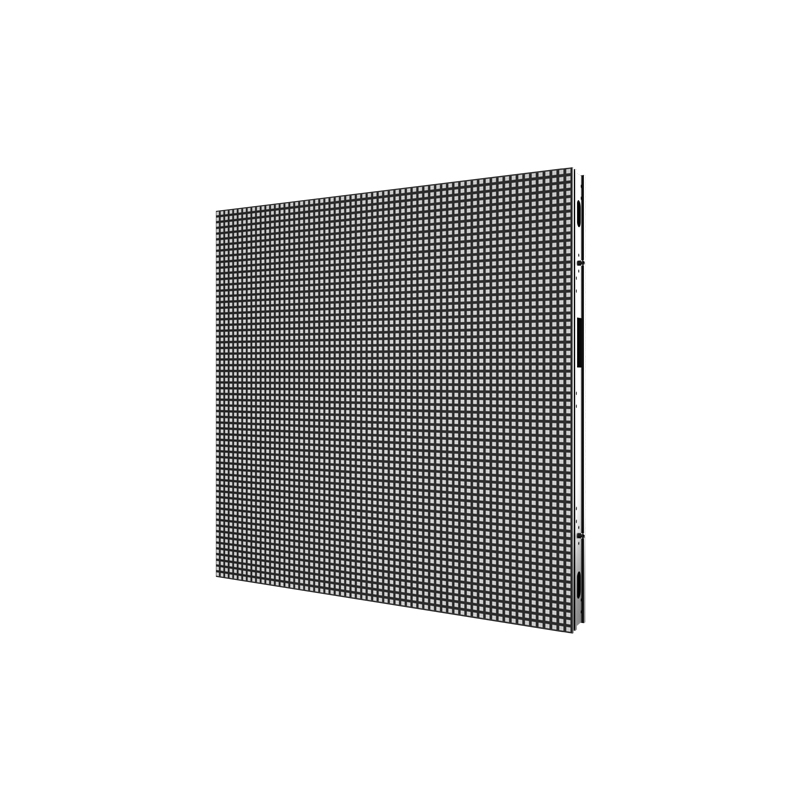

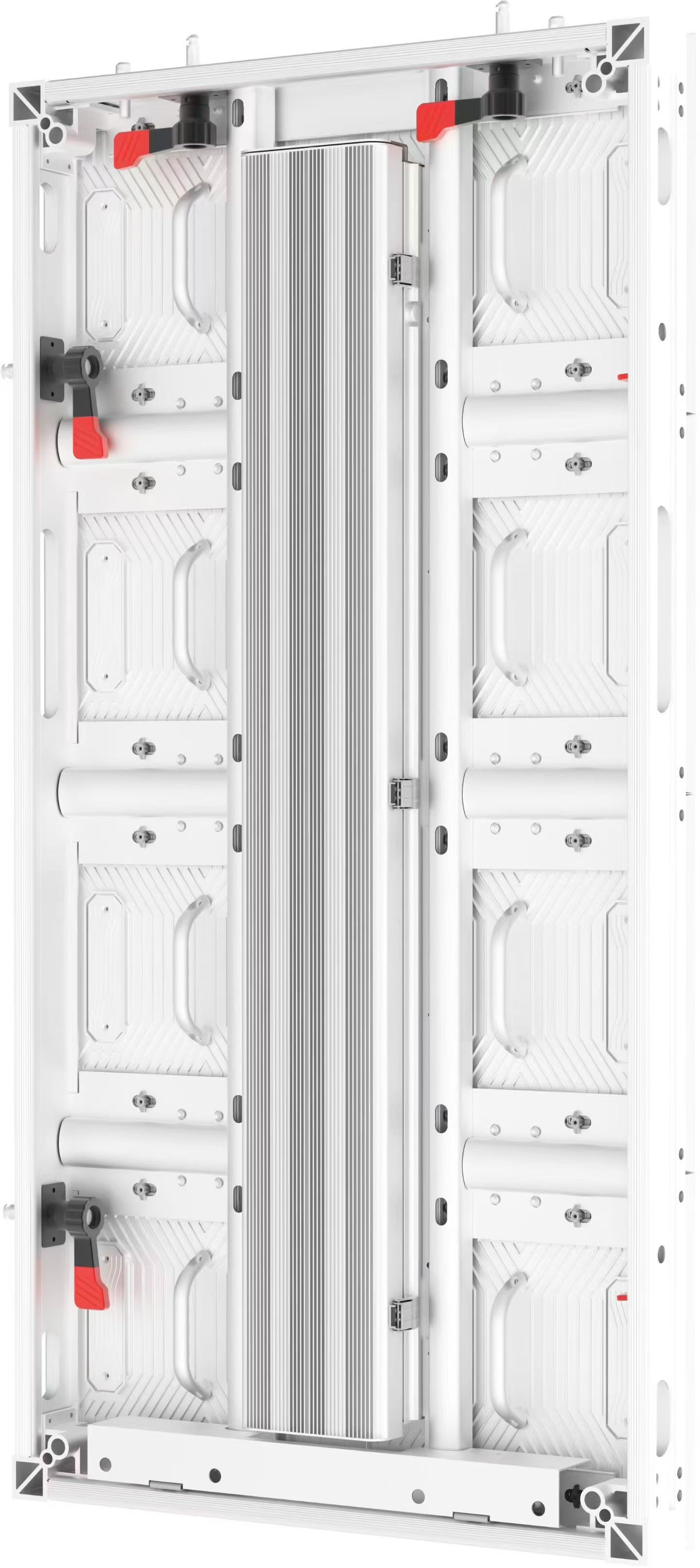

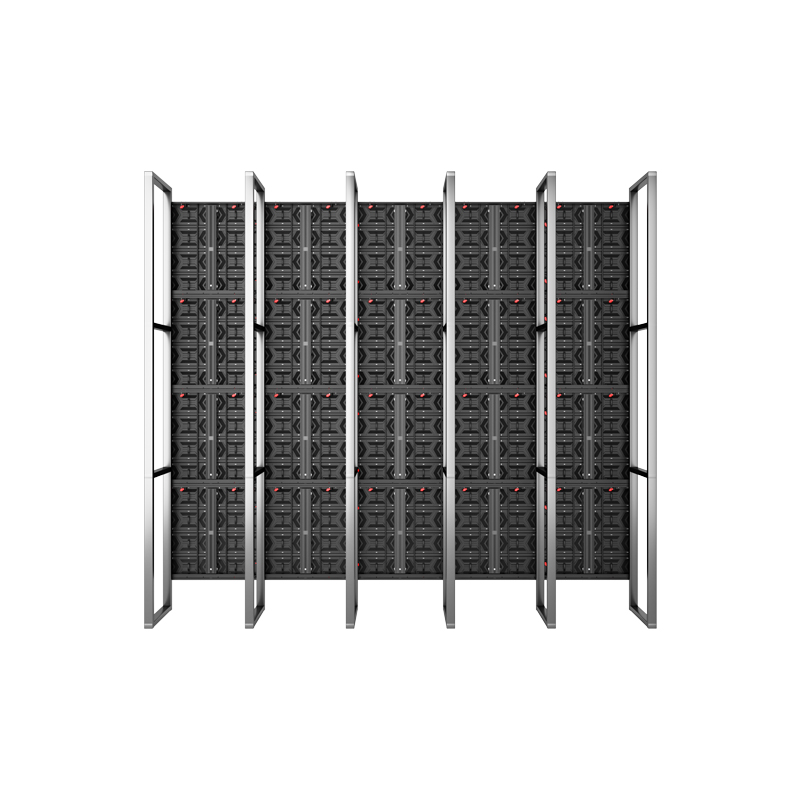

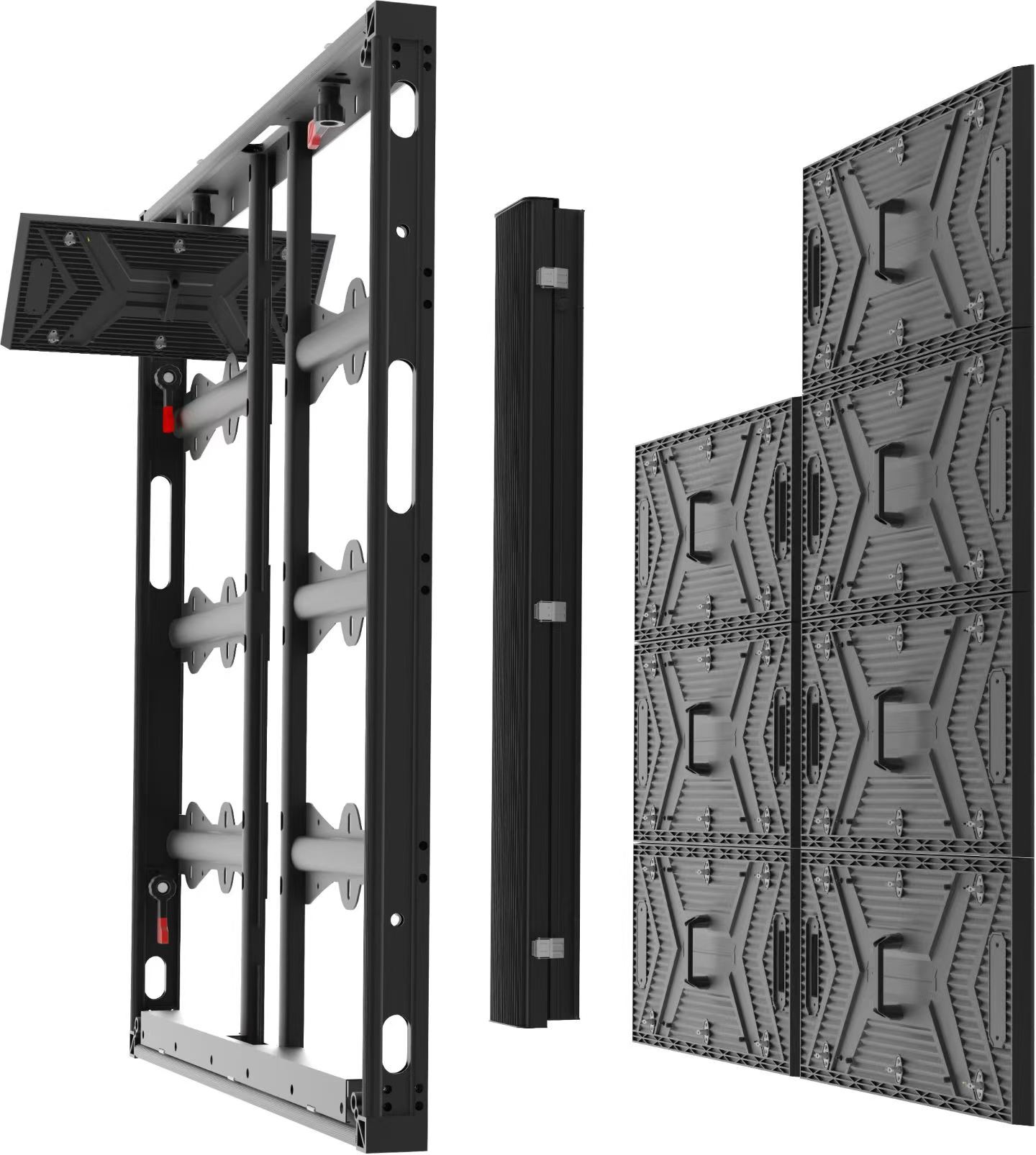

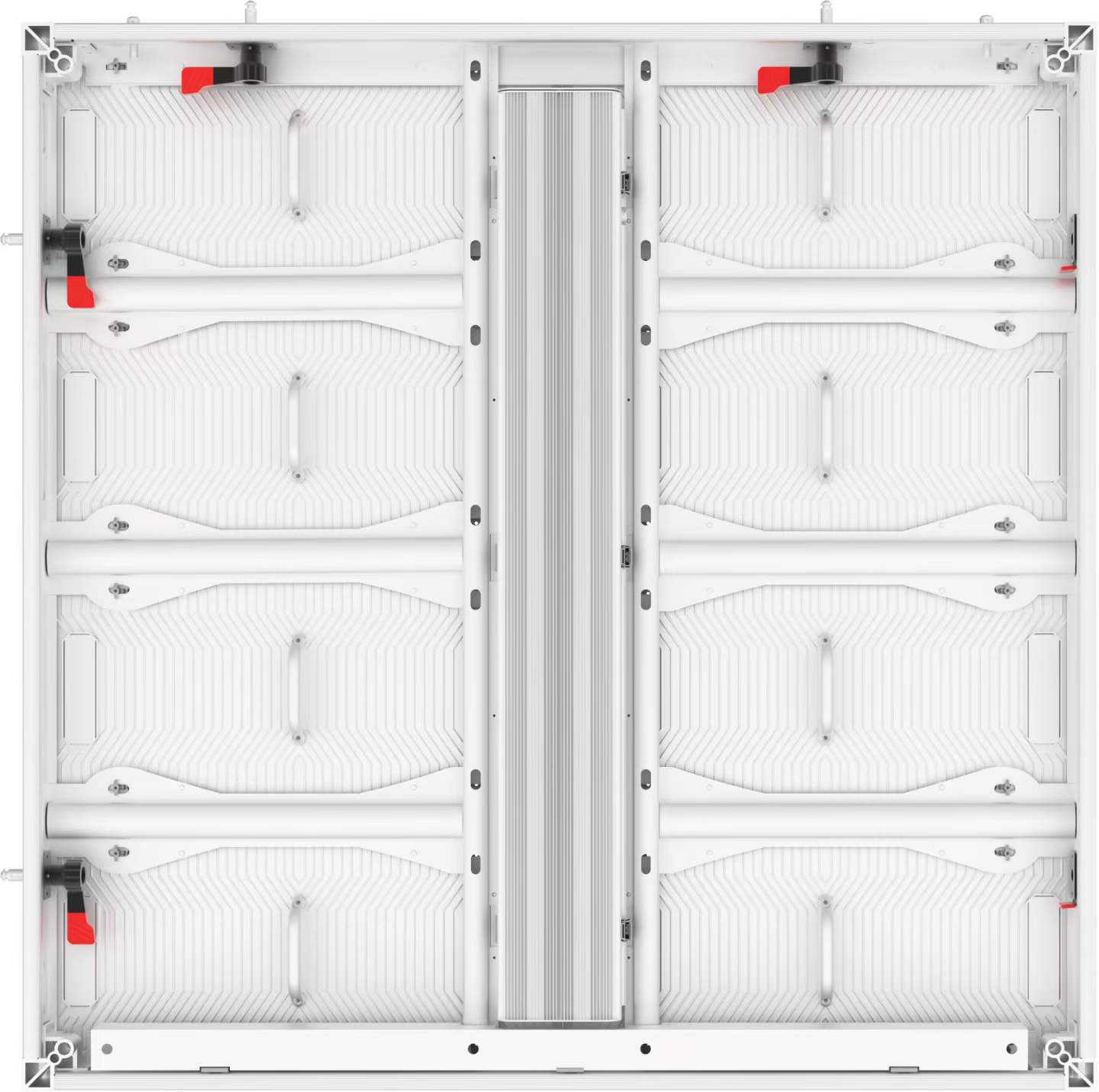

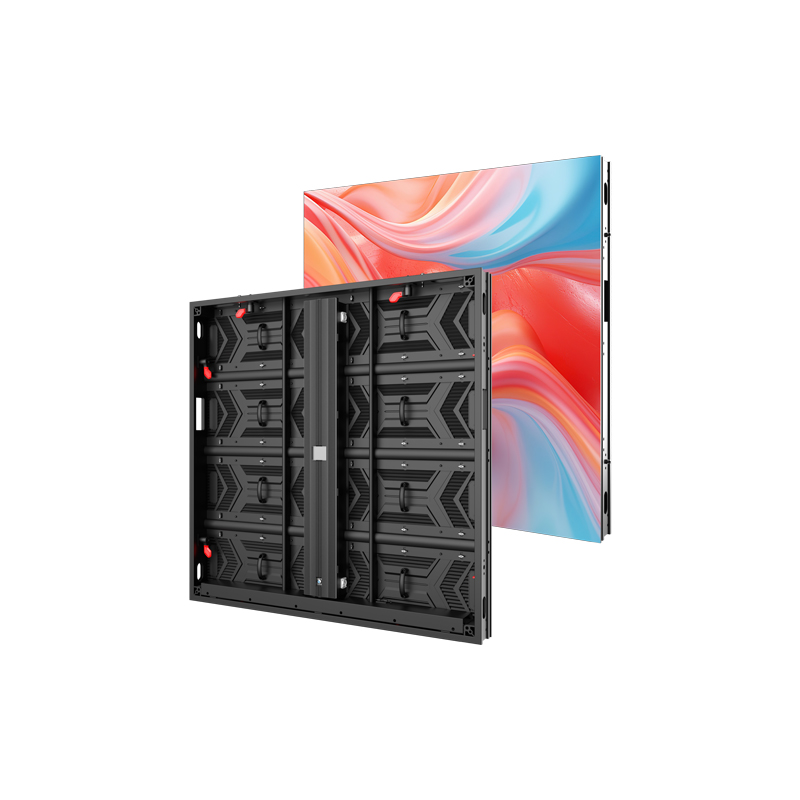

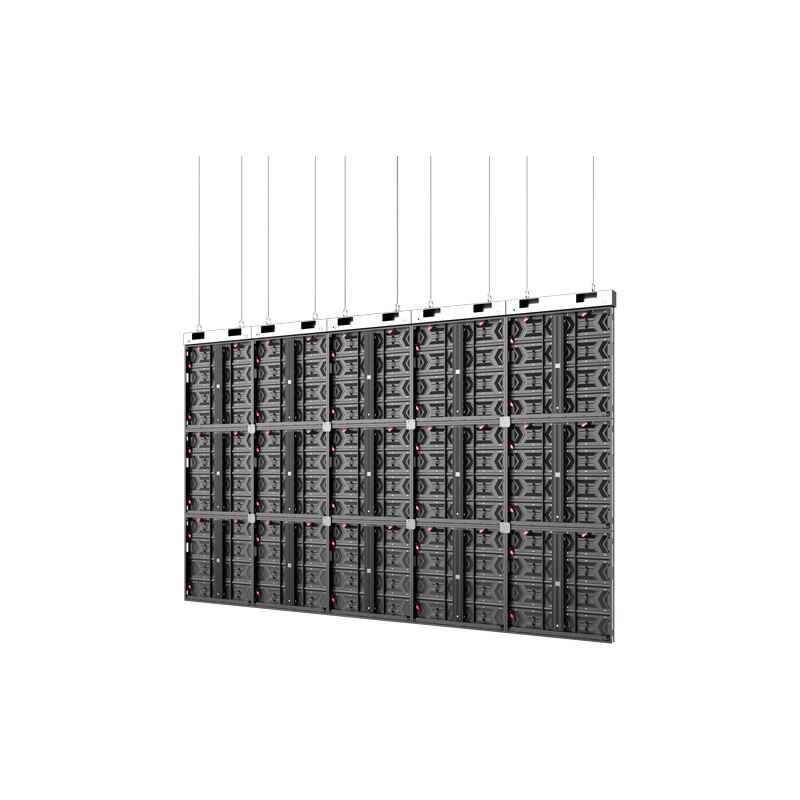

Cabinet, module, curved-corner installation and service-access details.
