Arena Stadium LED
Two cabinet platforms for perimeter advertising and sports venues. Compare the wider 900 Series with the square 960 Series, then select the pitch and service configuration for your project.
Two series, two clear specifications.
The 900 and 960 platforms use different cabinet and module sizes. Their technical data is listed separately below.
1600 × 900 mm stadium cabinet

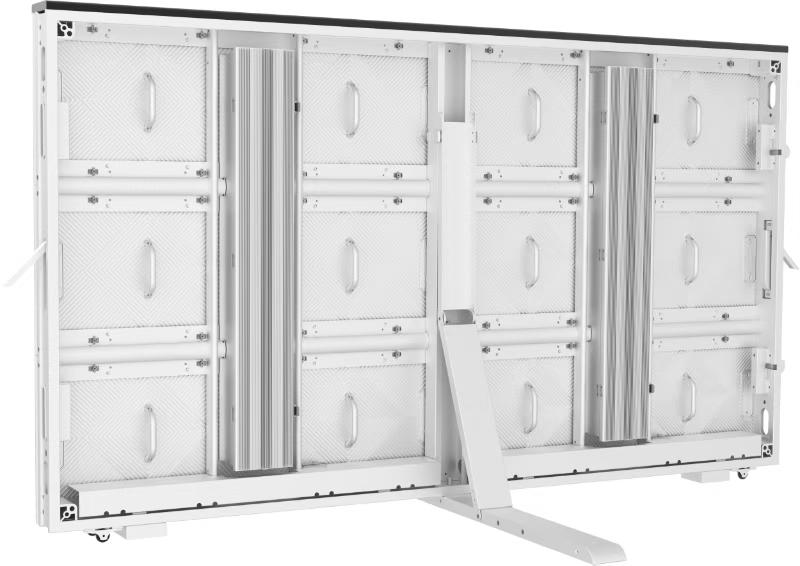

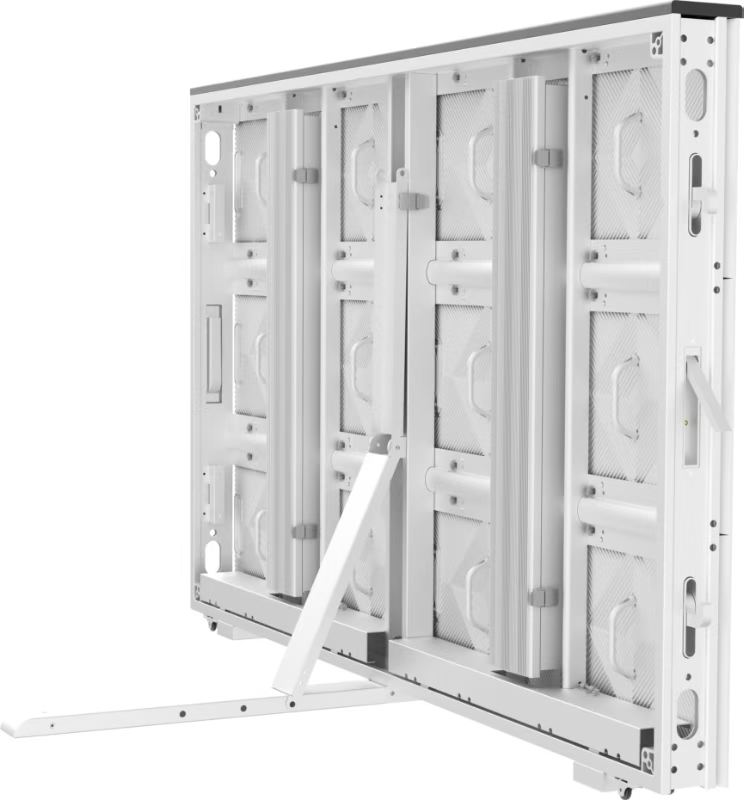

Wide-format perimeter cabinet with 400 × 300 mm modules and a rear support structure.
900 Series specification
Reference configurations for project selection; confirm the signed final datasheet before ordering.
| Parameter | P6.67 | P8.33 | P10 |
|---|---|---|---|
| Module resolution | 60 × 45 px | 48 × 36 px | 40 × 30 px |
| Cabinet resolution | 240 × 135 px | 192 × 108 px | 160 × 90 px |
| LED package | SMD2727 | SMD3535 | SMD3535 |
| Pixel density | 22,500 px/m² | 14,400 px/m² | 10,000 px/m² |
| Brightness | 6,500–9,500 cd/m² | 6,500–10,000 cd/m² | 6,500–10,000 cd/m² |
| Average / max. power | 250 / 630 W/m² | 200 / 550 W/m² | 200 / 550 W/m² |
| Cabinet size | 1600 × 900 mm |
| Module size | 400 × 300 mm |
| Cabinet weight | Approx. 52 kg |
| Maintenance | Front and rear service |
| Refresh rate / grayscale | ≥3840 Hz / 14 bit |
| Viewing angle | 170° horizontal / 110° vertical |
| Protection | IP68 front / IP66 rear, reference configuration |
| Input / working temperature | AC 100–240 V, 50–60 Hz / −20°C to +60°C |

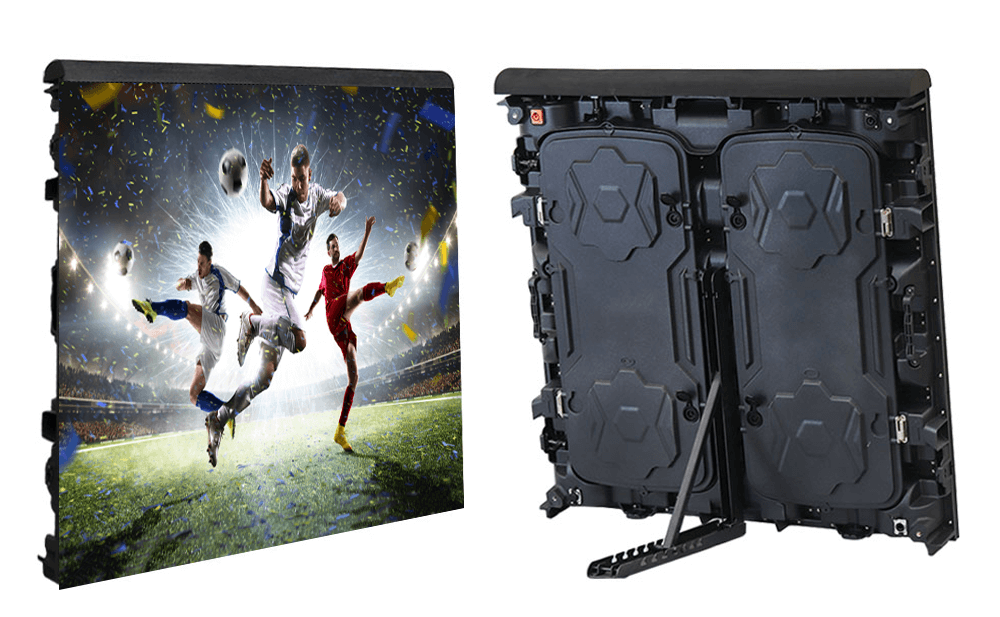

960 × 960 mm stadium cabinet
Square-format perimeter cabinet with 480 × 320 mm modules, shown separately from the 900 Series.
960 Series specification
Values transcribed from the supplied 960 Series reference image; confirm the final configuration for each project.
| Parameter | P6.67 | P8 | P10 |
|---|---|---|---|
| Module resolution | 72 × 48 px | 60 × 40 px | 48 × 32 px |
| Cabinet resolution | 144 × 144 px | 120 × 120 px | 96 × 96 px |
| LED package | SMD2727 | SMD2727 | SMD2727 |
| Scan mode | 1/6 | 1/5 | 1/2 |
| Minimum brightness | ≥5,500 cd/m² | ≥6,000 cd/m² | ≥6,500 cd/m² |
| Cabinet size | 960 × 960 mm |

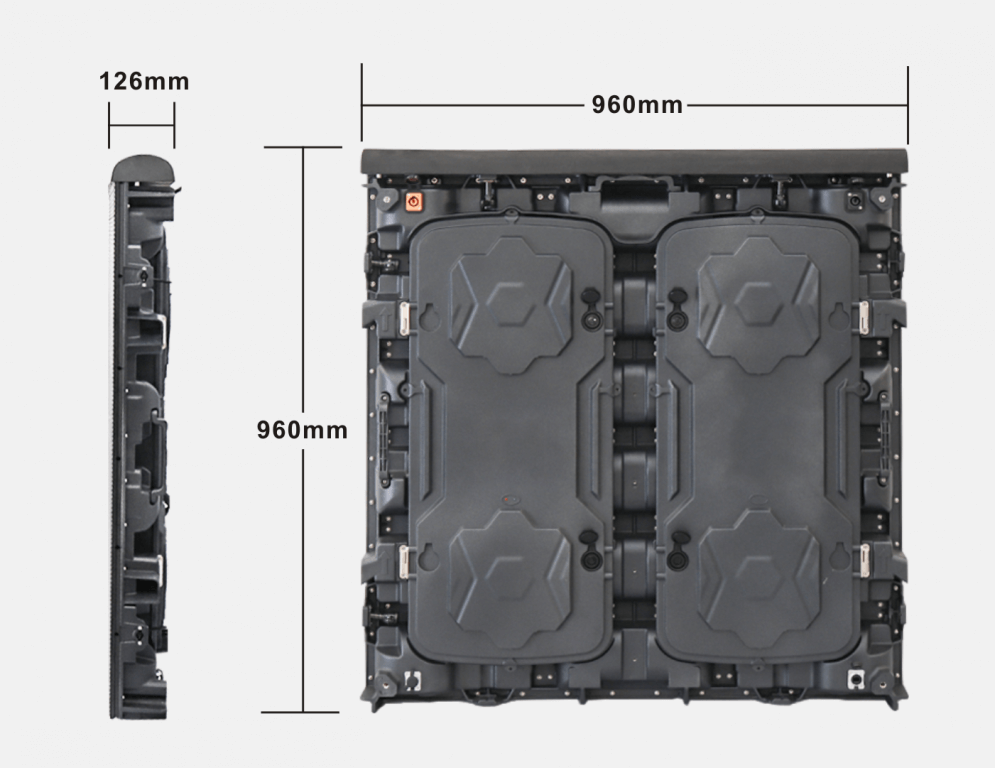

| Cabinet depth | 126 mm shown in the supplied cabinet drawing; confirm by configuration |
| Module size | 480 × 320 mm |
| Cabinet / module weight | 26.5 kg / 2 kg |
| Maintenance | Front and rear service |
| Refresh rate / grayscale | ≥3840 Hz / 14 bit |
| Viewing angle | 140° horizontal / 140° vertical |
| Protection | IP65 |
| Average / max. power | Common-cathode: 180 / 550 W/m²; regular: 320 / 750 W/m² |
| Input voltage | AC 110–220 V ±10% |
Plan a stadium perimeter display?
Send the field dimensions, required viewing distance and venue conditions to compare the 900 and 960 formats.
